تفاصيل المنتج
مكان المنشأ: قوانغتشو، الصين
اسم العلامة التجارية: XINGJIN
إصدار الشهادات: CCC;GB/T 3836.1-2021;GB/T 3836.4-2021;GB 19880-2005
رقم الموديل: جي-ساب-JBF4121A
شروط الدفع والشحن
الحد الأدنى لكمية: نظام 100 مجموعة
الأسعار: USD3-4/pc
تفاصيل التغليف: صندوق خشبي أو صندوق خارجي من الخشب الرقائقي مع كيس فقاعي أو ورق
وقت التسليم: 15-20days
شروط الدفع: تي / تي، خطاب الاعتماد
القدرة على العرض: 300000 مجموعات شهريا
حجم صندوق الهدايا: |
345*274*74 مللي متر |
التطبيقات: |
مدرسة |
شاشة: |
قاد |
ميزات إضافية: |
الربط البيني والمراقبة عن بعد والتنبيهات الصوتية |
درجة حرارة مثيرة للقلق: |
54 درجة مئوية ~ 70 درجة مئوية |
جهد الحافلة: |
تيار مستمر 14 فولت ~ تيار مستمر 24 فولت |
مادة الفرقة: |
بو |
حجم المضيف: |
45*34*14 مللي متر |
ضمان: |
1 سنة |
بيئة العمل: |
-10 ℃ ～ 50 ℃ |
حجم التعبئة: |
138*118*48 مللي متر |
التردد اللاسلكي: |
433 ميجا هرتز |
أقصى استهلاك للطاقة: |
0.5W |
حجم صندوق الهدايا: |
345*274*74 مللي متر |
التطبيقات: |
مدرسة |
شاشة: |
قاد |
ميزات إضافية: |
الربط البيني والمراقبة عن بعد والتنبيهات الصوتية |
درجة حرارة مثيرة للقلق: |
54 درجة مئوية ~ 70 درجة مئوية |
جهد الحافلة: |
تيار مستمر 14 فولت ~ تيار مستمر 24 فولت |
مادة الفرقة: |
بو |
حجم المضيف: |
45*34*14 مللي متر |
ضمان: |
1 سنة |
بيئة العمل: |
-10 ℃ ～ 50 ℃ |
حجم التعبئة: |
138*118*48 مللي متر |
التردد اللاسلكي: |
433 ميجا هرتز |
أقصى استهلاك للطاقة: |
0.5W |
Products Description
In automatic mode, when detectors detect a fire, they send signals to the control panel The control panel then activatesthe alarm fashing device, starts exhaust fans, cuts off non-essential power, and recalls elevators. If someone sees the fire.they can press the manual call point to initate the same process. For gas protection areas, two detectors need to beactivated simultaneously before the timer starts After the delay, the gas will be released, and the release indicator lightswill light up to warn people not to enter. All these steps work together to ensure rapid detection and safe evacuation.
|
1. Detection Layer (Sensors) The detection layer is the perception systemof the fire alarm system. It includes smokedetectors, heat detectors, and mixed smokeand heat detectors. Smoke detectors cansense the air changes caused by a fire and aresuitable for offices and hotels. Heat detectorsmonitor temperature rises and are suitable forkitchens and garages. Combined detectorsuse both signals simultaneously to reducefalse alarms, making them ideal for hospitalsand high-end buildings. For large spaces likewarehouses or stadiums, beam-type smokedetectors are used. For high-risk areas like oildepots, flame detectors are recommended. |
|
2. Input Layer (Manual and MonitoringEquipment) This layer has the functions of humanoperation and external equipment monitoring.It includes manual call points, input modules,short-circuit isolators, and fire phone sockets.The manual call points are set near exits andstaircases to enable people to manuallytrigger the alarm. The input module receivessignals from external devices (such as waterflow switches or pressure switches). Theshort-circuit isolator protects the system bydisconnecting the faulty part of the circuit. Thefire phone socket enables firefighters tocommunicate with the control center inemergencies. |
|
3. Control Layer (The "Brain" of the System)The control layer is the "brain" of the entiresystem. Its main components are the firealarm control panel and the gas firesuppression control panel. The fire alarmcontrol panel receives signals from alldetectors and modules. It decides when toissue an alarm and activate other devices. Thegas fire suppression control panel isspecifically designed for FM200, IG541, or CO2systems. It has functions such as delayedstart-up, manualautomatic mode switching,and pressure feedback monitoring. Othercontrol devices include repeater panels fordisplaying alarms on different floors and firebroadcast hosts for playing evacuationinstructions. |
|
4. Execution Layer (Alarm and ActionEquipment) The execution layer is responsible forexecuting the instructions from the controlpanel. It includes alarm indicator lights, outputmodules, fire alarm bells, and gas releaseindicators. The alarm indicator lights can emitloud sounds and flash lights to alert people toevacuate. The output module controls otherdevices, such as exhaust fans, fire dampers,power cut-off devices, or elevator recalldevices. The fire alarm bell is a low-costoption for traditional systems. The gas releaseindicator is installed at the entrance of theprotected area. When gas is about to bereleased or has been released, they will lightup to warn people not to enter. |
Product Advantages
|
|
|

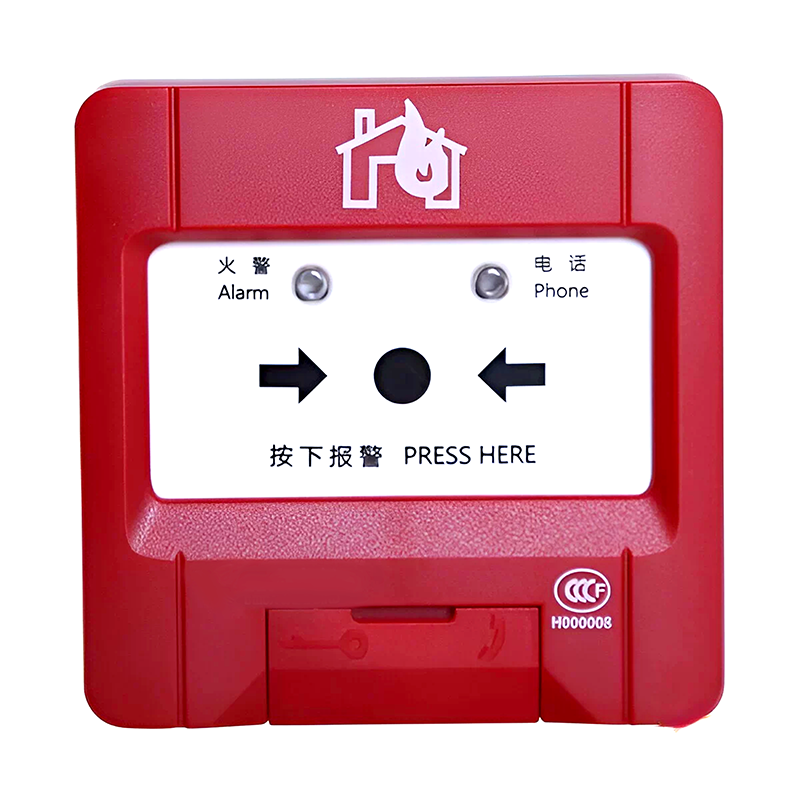

| J-SAP-M-A62E Addressable ManualCall Point 1.GB 19880 certified. 2.Simple and reliable device addressingvia portable coder. 3. Stable communication techniquewith high noise immunity. 4.Reusable and resettable operatingelements. |
J-SAP-M-A62KE ConventionalManual 1.Call Point GB 19880 certified. 2.Comes with a two-wire fire telephonejack. 3.The manual alarm provides passiveoutput contacts, which can directlycontrol external devicesthrough anintermediate relay. 4. Resettable press button. |
J-SAP-M-A62E-Ex AddressableIntrinsically Safe Manual Call Point 1.GB 19880 & GB/T 3836.1& GB/T3836.4 certified. 2.Explosion-proof type: Intrinsic safety. 3.Fully electronic encoding allows foron-site rewriting via an encoder. 4.The manual alarm can directly controlexternal devices. 5.Resettable press button. |
Products Parameters
| Specifications | J-SAP-M-A62E | J-SAP-M-A62KE | J-SAP-M-A62E-Ex |
|---|---|---|---|
| Operating Voltage | Loop 24V | DC 24V | Loop 24V |
| Operating Current | Quiescent current: <300µA Alarm current: <2mA |
Quiescent current: <0µA Alarm current: <25mA |
Quiescent current: <300µA Alarm current: <1mA |
| Dimension (with base) | 90×90×43mm (W×H×D) | 90×90×43mm (W×H×D) | 100×90×43mm (W×H×D) |
| Explosion-proof Sign | - | - | Ex ib IIC T6 Gb |
| Operating Environment | Operating Temperature: -10°C to 55°C Relative Humidity: ≤ 95% (Non-condensing at 40°C ±2°C) |
