تفاصيل المنتج
مكان المنشأ: قوانغتشو ، الصين
اسم العلامة التجارية: XINGJIN
إصدار الشهادات: GSG\TUV\ I S O 9 0 0 1, 1 4 0 0 1, 4 5 0 0 1
رقم الموديل: XJ100H/N ؛ XJ200H/N ؛ XJ300H/N ؛ XJ400H/N ؛ XJ500H/N.
شروط الدفع والشحن
الحد الأدنى لكمية: نظام 10 مجموعات
الأسعار: Pricing based on quantity
تفاصيل التغليف: صندوق خارجي من الخشب الرقائقي مع كيس أو ورقة فقاعة
وقت التسليم: 15-20 يوم
شروط الدفع: T/T ، L/C.
القدرة على العرض: 30000SET/شهر
نوع الوكيل: |
HFC-227EA/ NOVEC 1230 |
قطر الأنبوب (مم): |
18 |
درجة حرارة العمل (℃): |
من -40 إلى 80 |
درجة حرارة التفجير (℃: |
110±10 |
نوع الوكيل: |
HFC-227EA/ NOVEC 1230 |
قطر الأنبوب (مم): |
18 |
درجة حرارة العمل (℃): |
من -40 إلى 80 |
درجة حرارة التفجير (℃: |
110±10 |

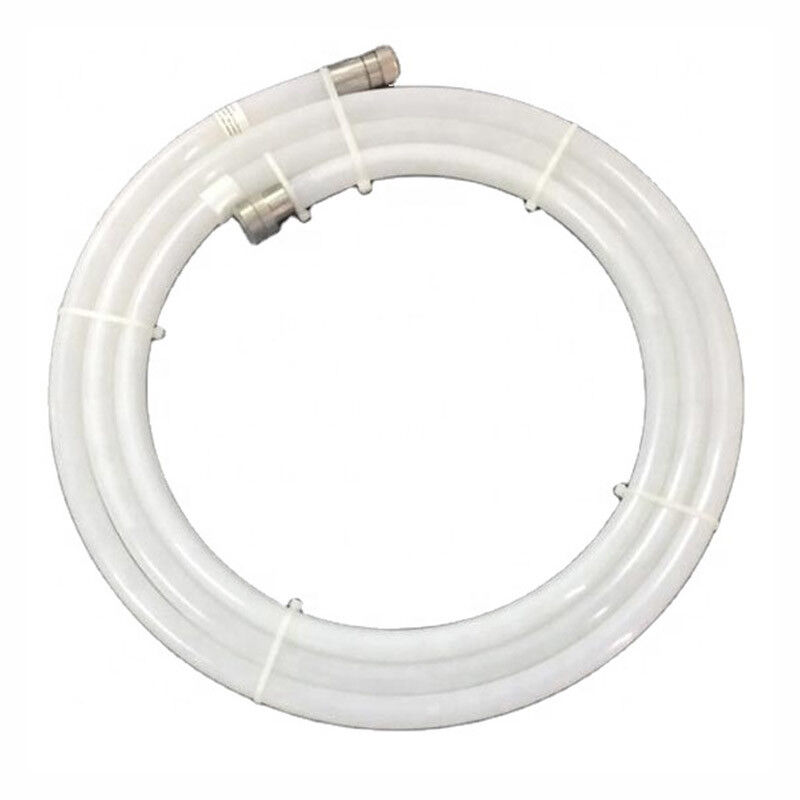

Automatic Fire Suppression Tube
Description:
Automatic fire suppression system consists of metal and plastic parts. Automatic fire suppression system is designed for protection of small enclosures with greater risk of fire. It operates automatically without any power supply by detecting higher temperature. When temperature in the protected enclosure rises to a critical threshold, the detection tube melts down at the point where affecting temperature is
the highest. Melting the tube creates a “nozzle” releasing the entire extinguishing agent stored in the tube directly onto the source of the fire.
|
Compositions: Pressure tube, fire extinguishing agent--HFC-227ea or Novec1230, pressure gauge, pipe fittings |
|
| Model | Type of agent | Amount of agent(g) | Length of tube(cm) | Diameter of tube(mm) |
Approximate maximum coverage (cubic meter) |
Working temperature(℃) | Blasting temperature(℃) |
| XJ100H/N | 250±5 | 100 | 18 | 0.25 | From -40 to 80 | 110±10 | |
| XJ200H/N | Hfc-227ea/ Novec 1230 |
500±5 | 200 | 18 | 0.5 | From -40 to 80 | 110±10 |
| XJ300H/N | 750±10 | 300 | 18 | 0.75 | From -40 to 80 | 110±10 | |
| XJ400H/N | 1000±10 | 400 | 18 | 1 | From -40 to 80 | 110±10 | |
| XJ500H/N | 1250±10 | 500 | 18 | 1.25 | From -40 to 80 | 110±10 |
|
Application and Advantages: Based on the volume of protected enclosure, the tubes are suitable for the ranges but even more than those: |
|
Packaging and Shipping for Inert Gas Fire Suppression System
Packaging:
The Inert Gas Fire Suppression System will be carefully packaged to ensure safe delivery and handling. The packaging will consist of the following materials:Heavy-duty cardboard box,Bubble wrap,Protective foam inserts,Instruction manual
Shipping:
We offer worldwide shipping for our Inert Gas Fire Suppression System. The following shipping options are available:
All shipments will be sent using a reliable and trusted courier service to ensure timely and secure delivery.Customers will receive a tracking number via email once their order has been shipped.
Special Handling Instructions:
If there are any special handling instructions for your shipment, please contact us at least 24 hours before your order is shipped. We will do our best to accommodate your request.
